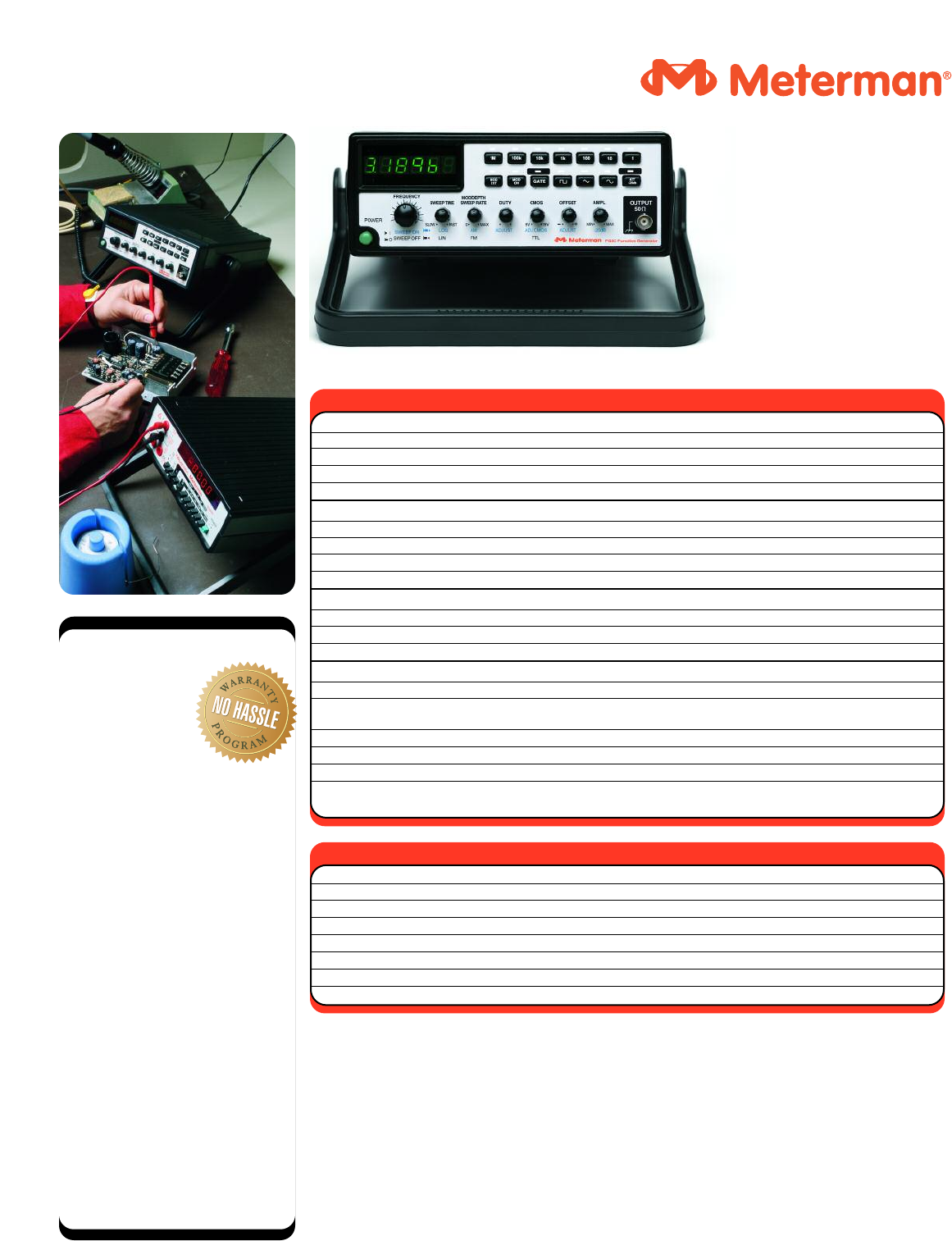

Specifications c
ont.
Function Range Accuracy
Sweep Operation
S
weep/Manual
S
witch selector
Sweep/Rate 100:1 ratio maximum, adjustable
S
weep/Time
0
.5 sec. to 30 sec. adjustable
Sweep/Mode Lin./Log. switch selector
Amplitude Modulation
D
epth
0
to 100 %
Modulation Frequency 400 Hz (INT), DC to 1 MHz (EXT)
Carrier BW 100 Hz to 3 MHz (–3 dB)
EXT Sensitivity ≤ 10 Vpp for 100 % modulation
Frequency Modulation
Deviation 0 to ± 5 %
Modulation Frequency 400 Hz (INT), dc to 20 kHz (EXT)
EXT Sensitivity ≤ 10 Vpp for 10 % modulation
Frequency Counter
Internal/External Switch Selector
Range 0.3 Hz to 3 Mz Internal Time base accuracy ±1 count
5 Hz to 150 MHz External
Time Base ±20 ppm (23 ºC,± 3 ºC), after 30 min. warm-up
Resolution 10 nHz (1 Hz range); 1 kHz (100 MHz range)
Input Impedance 1 MΩ /150 pF
Sensitivity ≤ 35 mVrms (5 Hz to 100 MHz)
≤
45 mVrms (100 MHz to 150 MHz)
Meterman®
The right tool, everyday.™
Meterman
Test Tools
website: www.metermantesttools.com
6920 Seaway Blvd.
Ev
er
ett, W
A 982
0
3
fax: 425-446-4882
tel: 877-596-2680
©2005 Meterman Test Tools. All rights reserved.
6/2005 1572140 D-US-N Rev D
No waiting.
No shipping
charges.
No hassle
warranty
Our commitment to
high-
quality products
and customer service is
demonstr
ated b
y
our
industry exclusive
“No Hassle” warranty.
In the unlikely event
that a Meterman test
tool requires warranty
service,
an
y of our local
dealers are authorized to
replace it, on the spot.
Included Accessories
T
est cables
, spare fuses, 117 V cord,
220 V line cord and users manual.
General Specifications
Display 6 digit; green LED, 7.6 mm (0.3 in) high
Power Source 115 V ac or 230 V ac, ± 15 %; 50/60 Hz
Operating Environment For indoor use, altitude up to 2000 M., 0 ºC to 40 ºC, 80 %R.H.
Storage Environment –10 ºC to 70 ºC @ 70 % R.H.
Dimensions (W x H x D) 243 mm x 93 mm x 292 mm
W
eight
2.2 k
gs (4.8 lbs)
Safety Appr
ovals
EN6
1010-1, Cat. II, Pollution degree 2
Warranty One-year
Meterman Test Tools Europe
P.O. Box 1186
560
2 BD Eindho
v
en
The Netherlands
